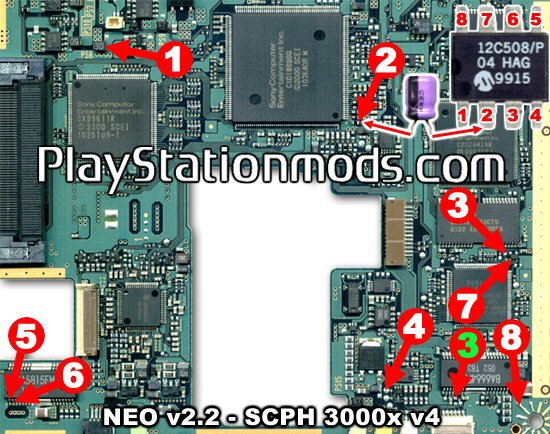

Diagrams for PlayStation 2 Model SCPH 30002/35002 (Rev4) using NEO2.2 modchip
 (All Diagrams are copyright playstationmods.com)

Note: If you do not need to use the EA Method to load your Backup games then you do not need to connect pins 3, 5 and 6, only just connect pins 1, 3,4, 7 and 8 (5 wire)

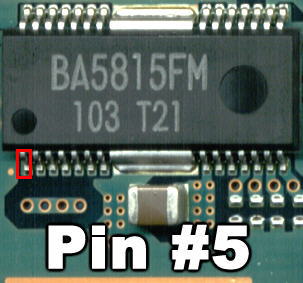

Close-up view of each pin / connection point as shown on the Mainboard above

CD Brake Option for Action Replay version 1.4, 1.5 and 1.7
With versions 1.4, 1.5 and 1.6 of the Action Replay 2 Cartridges you need to carry out that additional modification as below when using the EA method to load a backup game - This will allow the motor drive to stop spin when CD tray opens - otherwise CD is still spinning at a great rate of knots and CD may be ejected causing damage to the CD and/or yourself or property near by. Simply  run another wire from pin 3 on the Neo2.2 chip to the location shown on the close-up shop below on the Mainboard (shown on the above Mainboard  diagram with a green 3).

Close-up view of the Pin 3 location on the Motor controller chip.


NTSC-Pal Colour Correction
Required for NTSC games to be displayed in colour on a PAL TV system.
(same has the version 3 Mainboard)



Copyright 2000, Fatcat.Co
Page last updated 2 October 2001
Any queries, questions etc email psx@fatcat.co.nz
