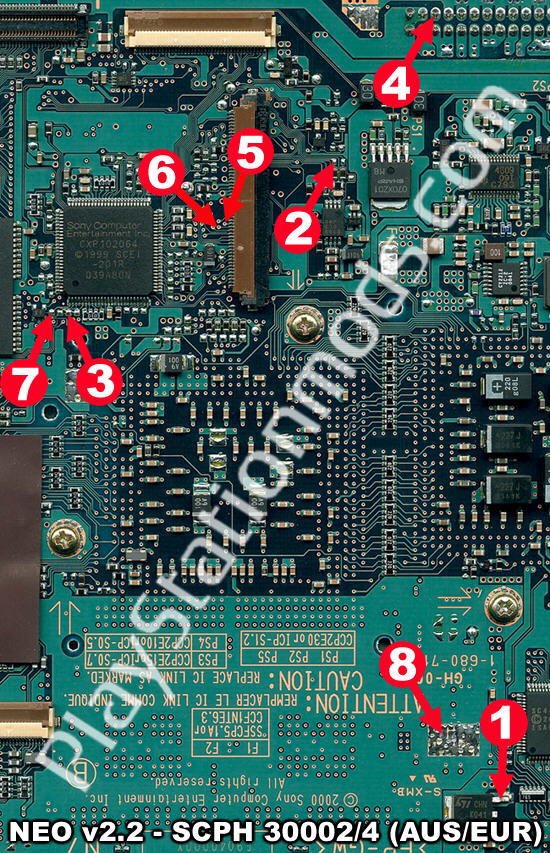

Close-up view of each pin / connection point as shown on the Mainboard above |
|||
 |
 |
 |
 |
 |
 |
 |
 |
Diagrams for PlayStation 2 Model SCPH 30002 (Rev3) using
NEO2.2 modchip
|
Close-up view of each pin / connection point as shown on the Mainboard above |
|||
|
|
|
|
|
|
|
|
|
CD Brake Option for Action Replay version 1.4, 1.5 and 1.7 |
|
| With versions 1.4, 1.5 and 1.6 of the Action Replay 2 Cartridges you need to carry out that additional modification as below when using the EA method to load a backup game - This will allow the motor drive to stop spinning when CD tray opens - otherwise CD is still spinning at a great rate of knots and CD may be ejected causing damage to the CD and/or yourself or property near by. Simply run a wire from pin 3 on the Neo2.2 chip on the Mainboard to the motor controller chip on the Laser Driver Board as shown below. | |
|
|
|
|
Location view of the Motor Controller chip on the Laser Driver Board |
Close-up view of the Pin 3 location on the Motor controller chip. |
|
NTSC-Pal
Colour Correction
|
|
|
